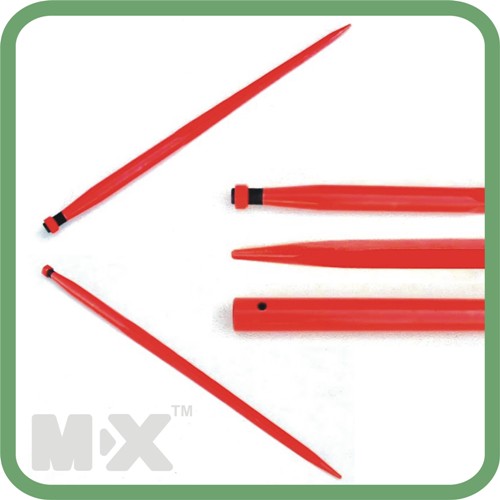

Square Forged Hay Bale Spikes

Square Forged Bale Spikes

Our Hay Bale Spikes are very stringent and heavy duty for various rigorous purposes. The material used for these Hay Bale Spikes is high tensile forged alloy spring steel. Heat treatment is also given to extend their longevity for usage. These Hay Bale Spikes have powder coated finish. They are also designed for easy insertion and removal of all types of hay bales.

Description of the Product Item #   Capacity Material Diameter Mounting Type
27" Hay Bale Spike (Tapered) HT271 800 lbs 1.4" 20 mm/Conus I
39" Hay Bale Spike( Tapered) HT392 2200 Lbs 1.8" 30mm/ ConusII
49" Hay Bale Spike (Tapered) HT492 2200 Lbs 1.8" 30mm/ConusII
49" Hay Bale Spike (Cross bolt type) HTX49 2200 Lbs 1.8" 1/2" Cross Bolt

Weld On Sleeves

  • Conus I sleeves are suitable for spears with material outer diameter of 1.4" at mounting end.
  • Conus II sleeves are suitable for spears with material outer diameter of 1.8" at mounting end.
Description of the Product Item # Type Length Outer Diameter
Weld on Tapered Sleeve C-I HTS01 Conus I 4.35" 1.97"
Weld on Tapered Sleeve C-II HTS02 Conus II 4.35" 1.97"
Weld on Tapered Sleeve C-II HD HTS02H Conus II 4.75" 2.25"
Weld on Sleeve X-2 HTSX2 Cross Bolt 5.70" 2.25"
